Jake, Those are our primary ranges, and all are reachable from anywhere. We don’t have any “islands”. I will caution though that that list is not exhaustive, as we also have a number of other user subnets we announce via our OPP program. I’m not sure if you participate in AMPR’s tunnel mesh, but if not, or you don’t particularly care, 44/8 should all be reachable via HamWAN, which makes for a simple routing entry. Nigel

On Sep 11, 2019, at 21:42, Jake Visser <visser.jacob@outlook.com> wrote:

Thanks Nigel, will do.

One follow on.. is there a public network diagram? I see the map on the sight, but it doesn’t really show what IP space is being used where and how its connected. I do full table routing on my network here– so when integrating this in (particularly without dynamic routing) I need to know what ranges hamwan is handling.. from AMPR I can see: 44.25.0.0 / 16 44.24.221.0 / 24 44.24.240.0 / 20

Is all that space accessible from Beacon Hill? Or is there “islands”?

Thanks again,

Jake

Sent from Mail <https://go.microsoft.com/fwlink/?LinkId=550986> for Windows 10

From: PSDR <psdr-bounces@hamwan.org> on behalf of Nigel Vander Houwen <nigel@nigelvh.com> Sent: Wednesday, September 11, 2019 9:22:33 PM To: Puget Sound Data Ring <psdr@hamwan.org> Subject: Re: [HamWAN PSDR] N7IEI - Beacon Hill online

Jake,

That’s a great signal and CCQ figures. Yes, it’s expected that they drop off when not in use. The modem backs off automatically if there’s not a need.

With regards to a static IP/subnet, when you know what you need/want and things are stable, reach out to netops@hamwan.org <mailto:netops@hamwan.org> and one of the admins will help you out. The backbone does run OSPF, but we don’t have client connections participate directly in the backbone for security/reliability reasons.

Thanks, Nigel

...

On Sep 11, 2019, at 21:15, Jake Visser <visser.jacob@outlook.com <mailto:visser.jacob@outlook.com>> wrote:

So managed to get the system up and running tonight. There will be some tinkering that is needed [My mast mounted USW-Flex doesnt want to power the dish with its current power source.. so some work to be done there], and I want to try and get a second link up and running to one of the other towers as well (assuming trees allow me).

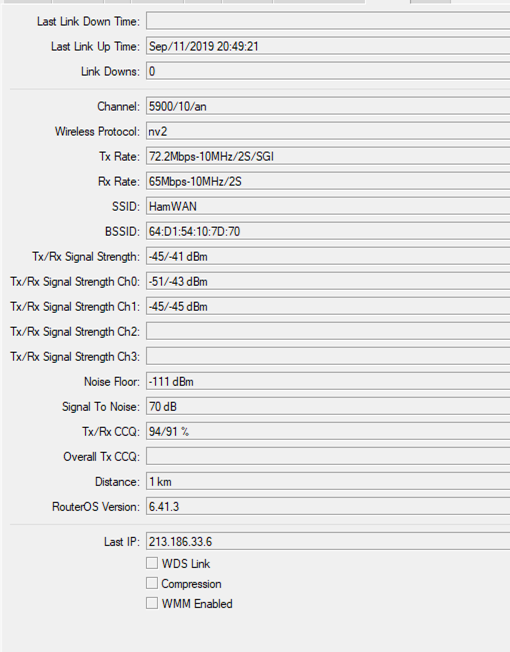

<3242002A3CAA42D49A1A444E3A5CB7A3.png>

I probably need to do a little bit of a better job aligning the dish, but 70dB SNR should be plenty. I am noticing though, that without data being passed my CCQ and rates drop way off… its been a long time since iv played with MT wifi gear, but I assume this is expected?

Does anyone on the network want to test connection/ping to me? Current IP is 44.25.131.214

Question; I will want to get a static IP allocated here (one for the dish, and one for my router ideally)… and if I recall reading right Hamwan uses OSPF for internal routing.. Once I sort out my 44. Allocation I would love to get that advertised onto the network. Who do I talk to about those things 😉?

Thanks again,

Jake

Sent from Mail <https://nam12.safelinks.protection.outlook.com/?url=https%3A%2F%2Fgo.microsoft.com%2Ffwlink%2F%3FLinkId%3D550986&data=02%7C01%7C%7Cc0855ff34dc54e29a09c08d73738dac9%7C84df9e7fe9f640afb435aaaaaaaaaaaa%7C1%7C0%7C637038589634949591&sdata=qUVgUCjiUdJmflXuOm0u0R4kvQQjQCbz85svjnzL18Y%3D&reserved=0> for Windows 10
